C-17 vs C-130: Comparing The Two Cargo Aircraft

Date:

History of the C-17 vs C-130

First delivered in 1991, the C-17 Globemaster III is the junior of these two cargo aircraft – by a lot. The U.S. Air Force declared the C-17 operationally ready in 1995, and ordered a total inventory of 223 C-17s from its producer, Boeing. The C-130 Hercules, on the other hand, was first delivered in 1956, almost 40 years before the C-17 was a reality. Many variations of the C-130 exist, as well as a few that no longer exist. The C-130A and C-130B were ordered in a batch of 219 in 1956, but by the time August of 1962 rolled around, Lockheed Martin was already on to the C-130E (of which the USAF ordered over 300).

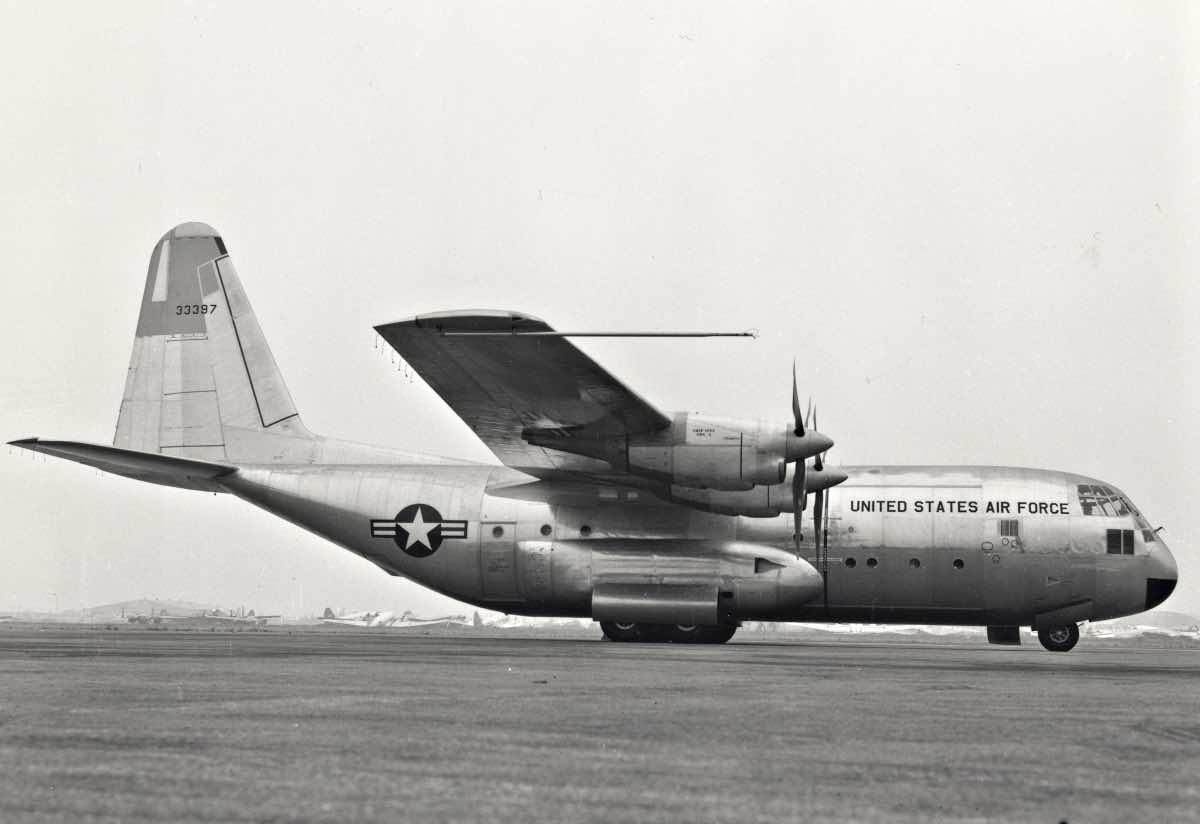

Old C-130, C-17 vs C-130
Archived photo of the YC-130 Hercules during its ferry flight from Burbank, Calif. to Edwards Air Force Base, Calif. August 23, 1954. The C-130 is still in production today, making it the longest running military aircraft production line in history.
U.S. Air Force

Active duty locations for the C-17 are Travis AFB, California; Dover AFB, Delaware; Joint Base Lewis-McChord, Washington; Joint Base Charleston, South Carolina; and Joint Base McGuire-Dix-Lakehurst, New Jersey. Also, Pacific Air Forces operates C-17s from Joint Base Elmendorf-Richardson, Alaska, and Joint Base Pearl Harbor-Hickam, Hawaii. Active-duty locations for the C-130 and its variations are Dyess Air Force Base, Texas; Little Rock AFB, Arkansas; Ramstein Air Base, Germany; and Yokota AB, Japan.

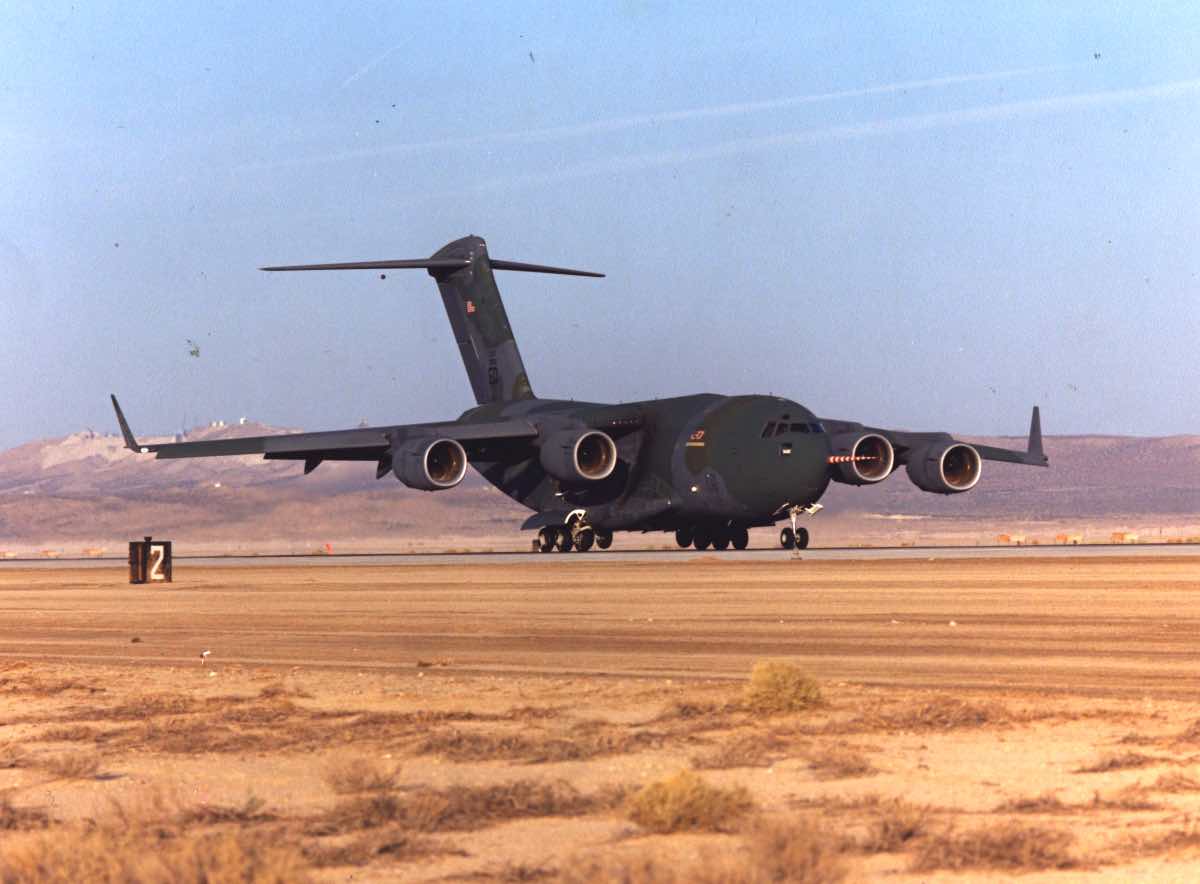

First C-17 flight, C-17 vs C-130
Sept. 15, 1991: The first flight of T-1 takes place from Long Beach Municipal Airport to Edwards Air Force Base, Calif. The flight crew included pilot Bill Casey, co-pilot Lt. Col. George London of the 6510th Test Wing, loadmaster Ted Venturini and flight test engineer George Van de Graaf, both McDonnell Douglas personnel.
U.S. Air Force

Aircraft Size

Newer and bigger. That is a pretty good way to describe the C-17 in reference to the C-130. The C-17 Globemaster III measures 174 long, 55 feet one inch tall with a wingspan of 169 feet 10 inches. The C-130E, C-130H, and C-130J – three main variants of the six-decade-old aircraft that are currently active – are noticeably smaller than the C-17. These three C-130 variants measure 97 feet nine inches long, 38 feet, 10 inches tall with a 132-foot, seven-inch wingspan. The C-130J-30, a stretch version with a 15-foot fuselage extension, measures out to be 112 feet nine inches long. While neither of these aircraft comes close in size to the C-5 Super Galaxy – the USAF’s biggest active aircraft and cargo transport plane – the C-17 and C-130 are still large aircraft capable of transporting massive quantities of supplies or troops at a moment’s notice.

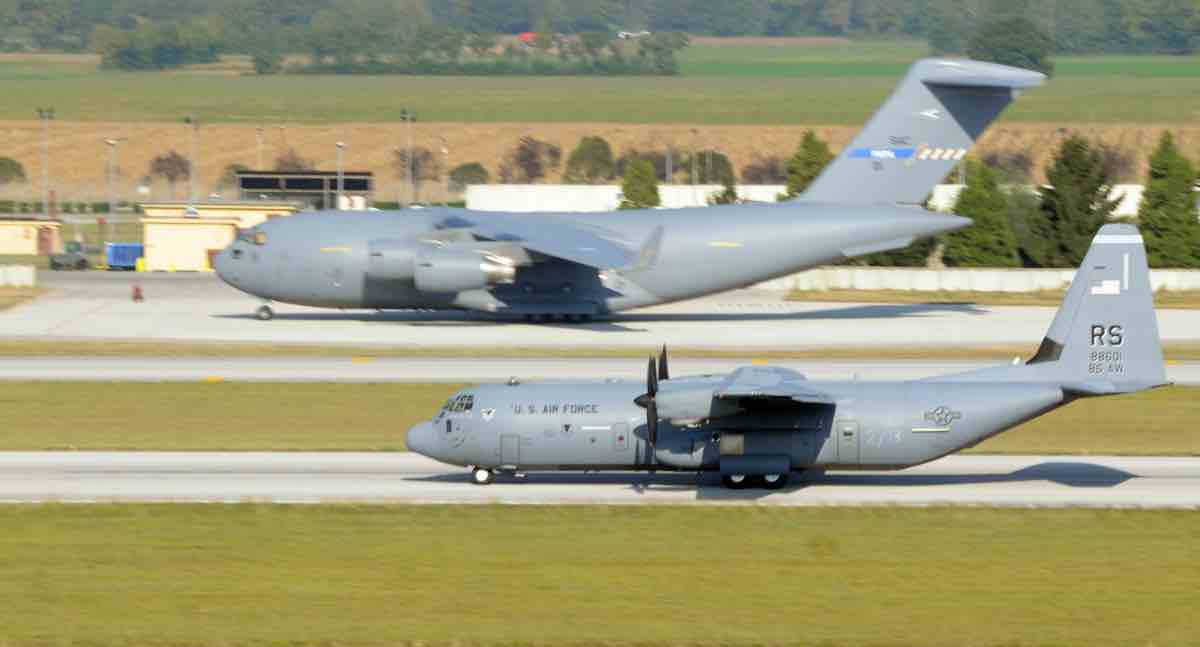

C-17 vs C-130 size
A Boeing C-17 Globemaster III and a C-130 Hercules waits on the flight line Oct. 5 at Aviano Air Base, Italy, to be boarded by the 173rd Airborne Brigade Combat Team’s first full-spectrum training in Europe. The 173rd ABCT, stationed in Vicenza, Italy, is leading the effort in the first brigade-sized operation in Europe since 2003 that includes more than 3,500 U.S. military and joint partner nation paratroopers.
Airman 1st Class Jenay Randolph, U.S. Air Force

Crewmembers

In terms of the personnel needed to operate the C-17 vs C-130 – it’s just about the same across both platforms. A crew of three operate the C-17 GlobemasterIII. These three crewmembers are the pilot, co-pilot and loadmaster. Flying with only a crew of three airmen reduces manpower requirements, risk exposure and long-term operating costs. When the mission is geared towards a medical situation, a basic crew of five – two flight nurses and three medical technicians – is added for aeromedical evacuation missions. Medical crew may be altered as required by the needs of patients



In the C-130E/H variants of the Hercules, fice crew members operate the aircraft. The crew consists of two pilots, a navigator, a flight engineer and a loadmaster. For the C-130J/J-30 variants, only three crewmembers – two pilots and loadmaster – are needed. Similar to the C-17, the aeromedical evacuation crew consists of five members as well. Medical crew may be decreased or increased as required by the needs of patients.

C-17 vs C-130: Payload

The purpose of these two aircrafts is clear: carry heavy stuff, and lots of it. The C-17 was designed with tanks in mind. The Globemaster III is capable of carrying an M1 Abrams Battle Tank, alongside other tactical vehicles and troops. The maximum payload capacity of the C-17 is 172,000 pounds and its maximum gross takeoff weight is 585,000 pounds. The C-130, which pushed the boundaries of massive aircraft in the 1950s, isn’t able to hold as much. Each version of the C-130 Hercules has a maximum allowable payload capacity of right around 43,000 pounds. It’s maximum takeoff weight is 155,000 pounds for the C-130E/H, and 164,000 pounds for the C-130J.

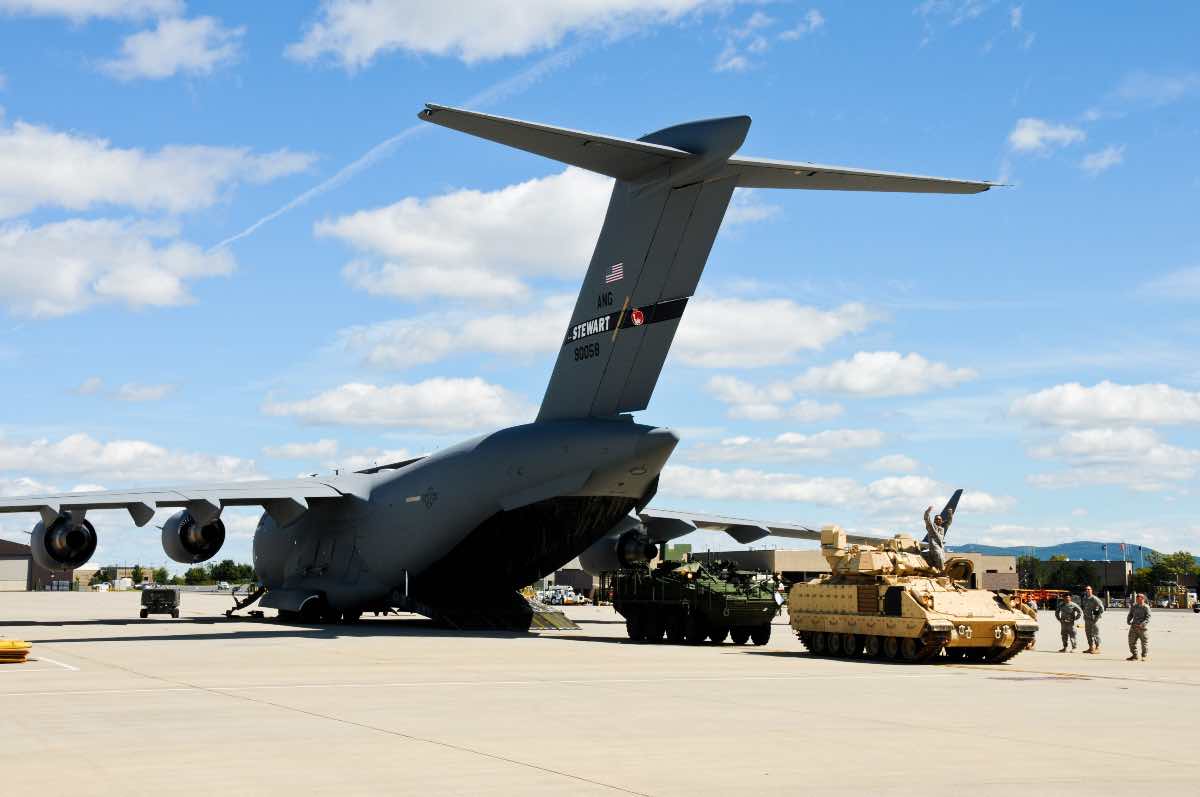

C-17 Payload, C-17 vs C-130
STEWART ANGB, Newburgh N.Y. --A Bradley fighting vehicle and a Stryker fighting vehicle stationed at the end of a 105th Airlift Wing C-17 Globemaster III in preparation for loading and transport back to Fort Benning GA. Sept. 19, 2012.
Tech. Sgt. Michael O’Halloran, U.S. Air Force

Engines

Four Pratt & Whitney F117-PW-100 turbofan engines, which are based on the commercial Pratt and Whitney PW2040 used on the Boeing 757, power the C-17 Globemaster III. Each engine is rated at 40,440 pounds of thrust and includes thrust reversers. These thrust reversers are an impressive engineering feet. They direct the flow of air upward and forward to avoid ingestion of dust and debris. Additionally, thrust reversers provide enough thrust to reverse the aircraft while taxing backwards and create in-flight drag for maximum rate descents.

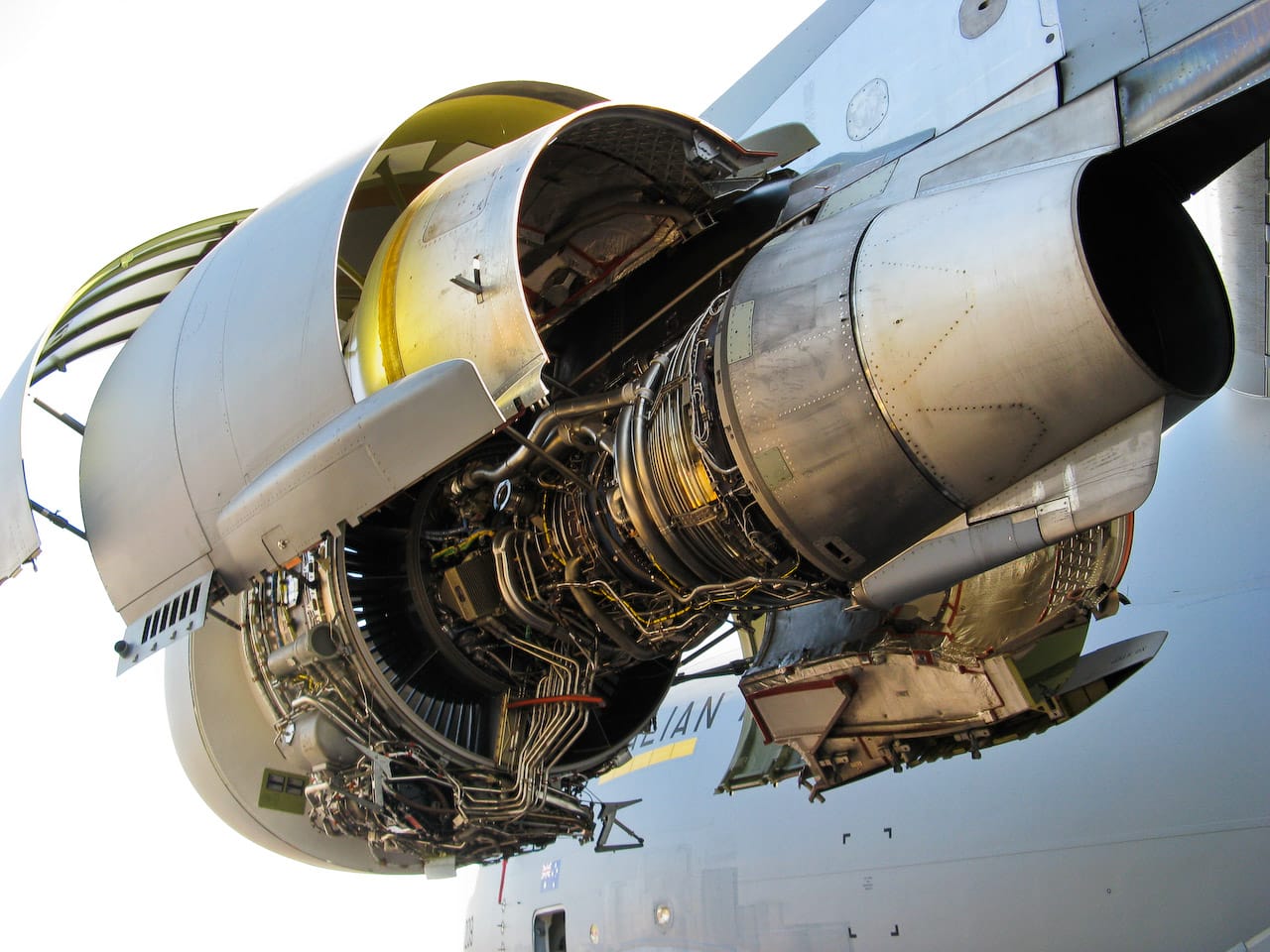

C-17 Engine, C-17 Facts
The engine of a Royal Australian Air Force C-17 Globemaster at the 2008 Amberly AFB Airshow, QLD Australia.
Timothy Swinson

C-130: Four Allison T56-A-11 or -9 turboprop engines powered the initial production model – the C-130A. Allison T56-A-7 turboprop engines were used in the C-130B. Introduced in August of 1962, C-130Es used the same Allison T56-A-7 engine, but added two 1,290 gallon external fuel tanks and an increased maximum takeoff weight capability. June 1974 introduced the first C-130Hs. The C-130H was outfitted with the more powerful Allison T56-A-15 turboprop engine. Nearly identical to the C-130E externally, the new engine brought major performance improvements to the aircraft. The C-130J, the latest variant to be produced, contains the noticeable difference of a six-bladed composite propeller coupled to a Rolls-Royce AE2100D3 turboprop engine. This version of the C-130 Hercules brings substantial performance improvements over all previous models.

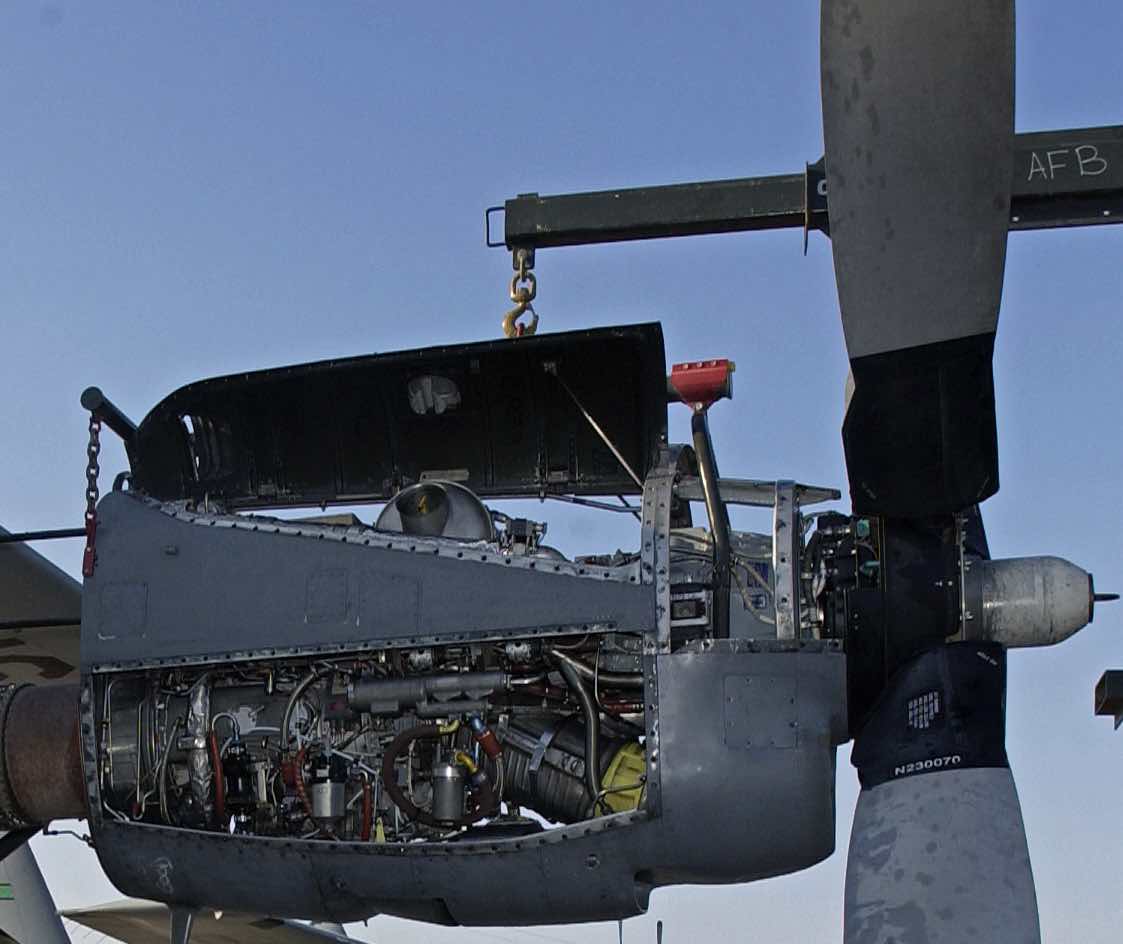

T56 Engine in C-130
US Air Force (USAF) Maintainers from the 745th Expeditionary Airlift Squadron (EAS) prepare to mount an Allison T56/501-D engine with propeller on a C-130 Hercules during Operation IRAQI FREEDOM. The newest versions of the C-130 include Rolls-Royce AE2100D3 turboprop engines with six rotors.
U.S. Air Force

C-17 vs C-130: Mission

The overarching mission of the C-17 Globemaster is to strategically deliver troops and cargo of all types to main operating bases or directly to forward bases in the deployment area. The C-17 is touted as the ‘most flexible cargo aircraft to enter the airlift force’ byt the U.S. Air Force. Tactical airlift and airdrop missions are among the C-17’s bread and butter. It can transport litters and ambulatory patients during aeromedical evacuations as well.

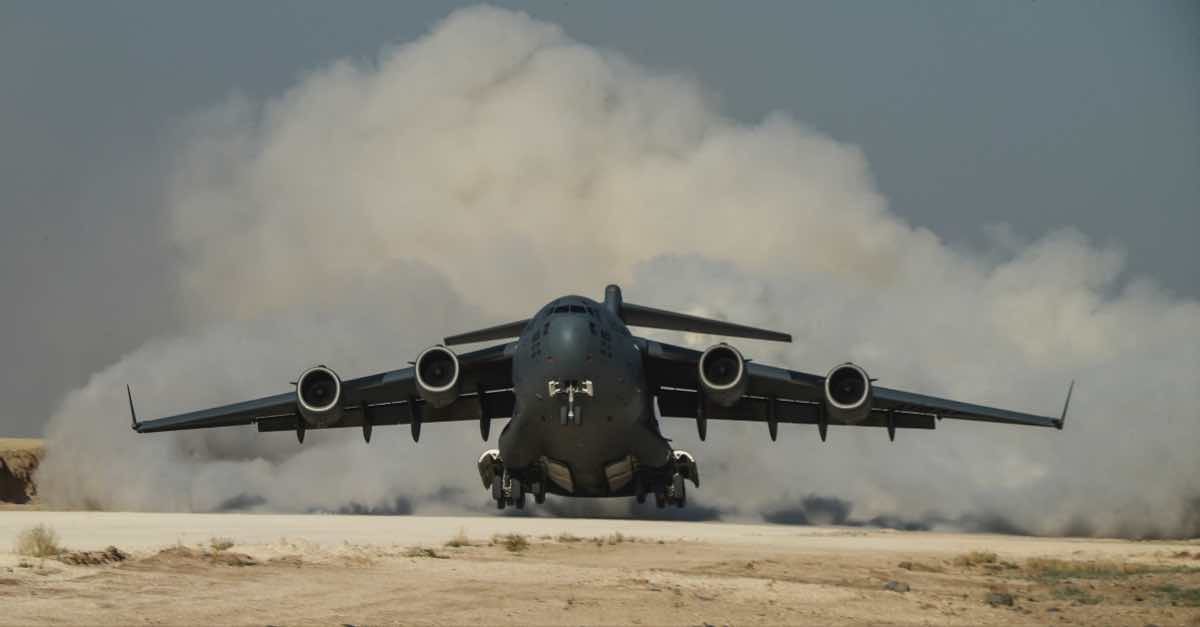

C-17 delivery, C-17 vs C-130
A U.S. Air Force C-17 Globemaster departs from a Coalition airfield in Northeast Syria, June 26, 2018. The C-17 mission was in support of Operation Inherent Resolve. In conjunction with partner forces, CJTF-OIR's mission is to defeat ISIS in designated areas of Iraq and Syria and set conditions to increase regional stability.
Senior Airman Izabella Sullivan, U.S. Air Force

The tactical portion of the airlift mission is the C-130s main responsibility. The aircraft operates from rough, dirt strips and is the prime transport for airdropping troops and equipment – specifically into hostile areas. Basic and specialized versions of the aircraft airframe perform a diverse number of roles, including airlift support, Antarctic ice resupply, aeromedical missions, weather reconnaissance, aerial spray missions, firefighting duties for the U.S. Forest Service and natural disaster relief missions.

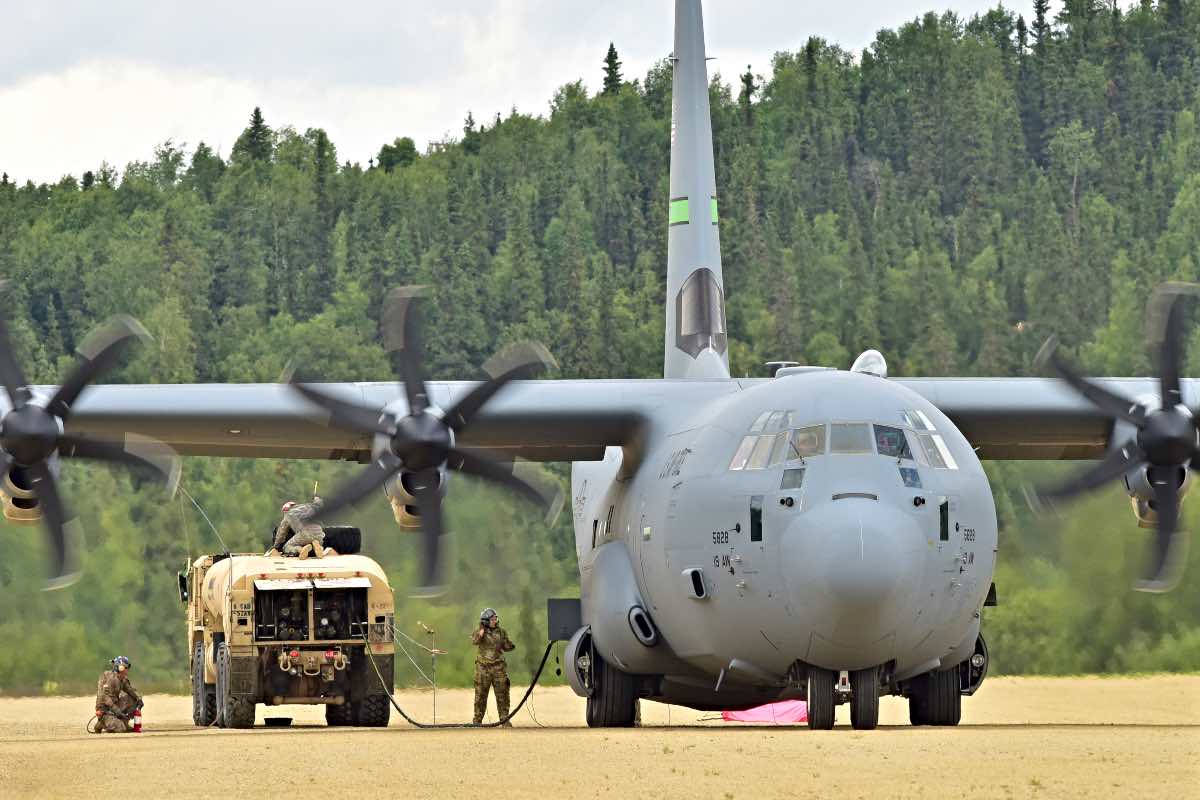

C-130 downloading fuel
Soldiers from E Company, 1st Battalion, 52nd Aviation download fuel from an Air Force C-130 Hercules July 19 on the Firebird Assault Landing Strip in the Yukon Training Area.
John Pennell, U.S. Army

Carrying Capacity

A large aft ramp and door system accommodates nearly all of the Army’s air-transportable equipment. Cargo can contain a 69-ton M1 Abrams main battle tank, armored vehicles, trucks and trailers. Also, the cargo floor has rollers that can be flipped from a flat floor which accommodates wheeled or tracked vehicles as well as rollerized conveyors which accommodate palletized cargo. The C-17 is designed to airdrop 102 paratroopers with their accompanying equipment.

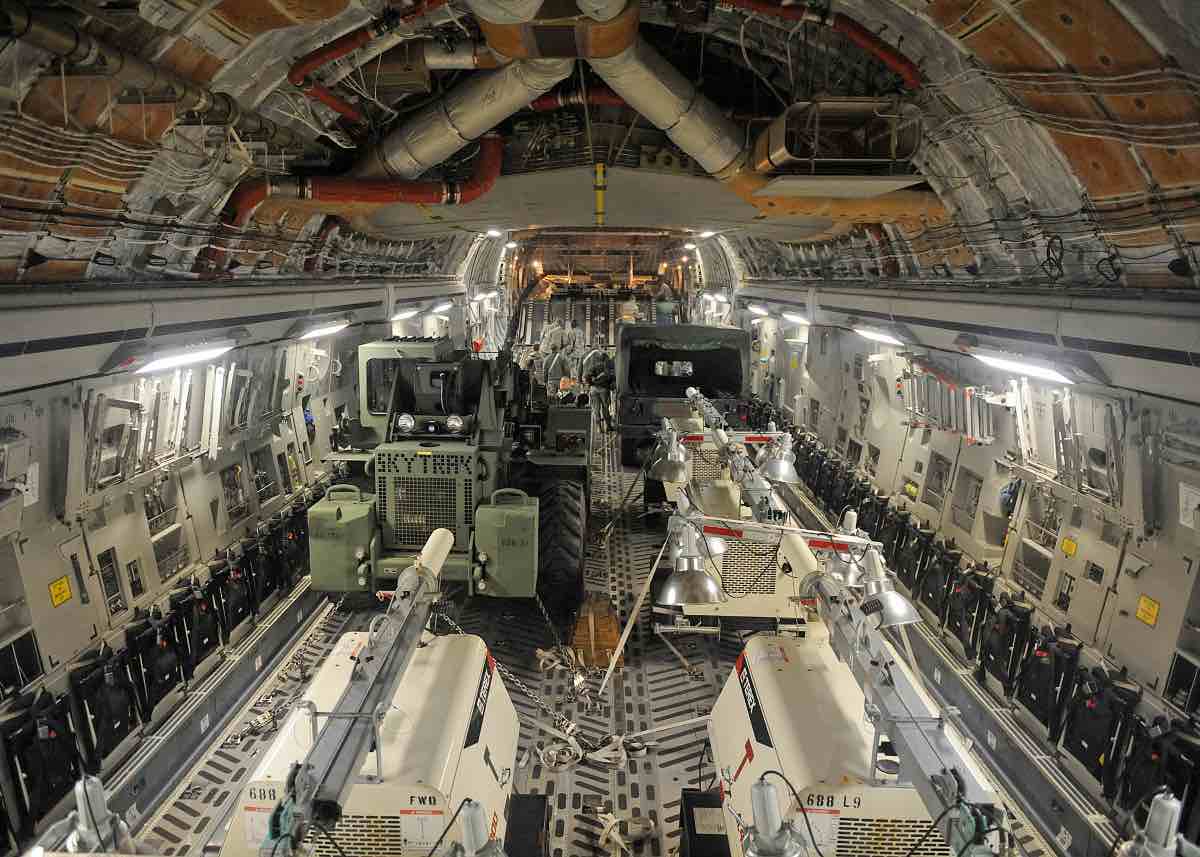

C-17 cargo, C-17 vs C-130
LANGLEY AIR FORCE BASE, Va. -- Vehicles, equipment, and supplies are shown loaded into the bay of a C-17 Globemaster III Jan. 22. Air Force and Army personnel from Joint Base Langley-Eustis, Va. filled the aircraft, the third of its type to transfer peninsula efforts in support Operation Unified Response, a massive movement of military personnel and supplies to aid in relief efforts following the devastating earthquake that struck Haiti on Jan. 12.
Airman Rebecca Montez, U.S. Air Force

The following can be loaded and transported on a C-130E/H/J: 6 pallets or 72 litters or 16 CDS bundles or 90 combat troops or 64 paratroopers. The following can be loaded and transported on a C-130J-30: 8 pallets or 97 litters or 24 CDS bundles or 128 combat troops or 92 paratroopers. Or a combination of any of these up to the cargo compartment capacity or maximum allowable weight.
