How the US Navy Mines an Entire Strait in 48 Hours — and How an Enemy Clears It

A naval mine costs between $10,000 and $25,000. An aircraft carrier costs $13 billion. A mine does not need to sink a carrier to achieve its strategic objective — it just needs to exist. The mere possibility of mines in a waterway can shut down shipping, delay amphibious operations for weeks, and force a navy to commit enormous resources to clearing a channel that may or may not be mined. This is why mine warfare has been called the poor man's navy: it inverts the cost equation of naval power, giving weak navies a tool to paralyze strong ones.

How Mines Work: Five Ways to Kill a Ship

Naval mines have evolved from simple floating spheres packed with explosives into sophisticated weapons that can distinguish between ship types, count the number of targets that pass overhead, and wait weeks before arming themselves. The modern mine taxonomy includes five basic types, each triggered by a different physical phenomenon.

Contact mines are the oldest and simplest. They float at a set depth, tethered to the seabed by a cable, and detonate when a ship's hull physically strikes them. The protruding horns on a traditional contact mine are chemical detonators — when a ship bends the horn, a glass vial inside breaks, releasing acid into a battery that generates the electrical current to fire the detonator. Contact mines are cheap, reliable, and have been sinking ships since the American Civil War.

Magnetic influence mines sit on the seabed and detect the magnetic field distortion created by a steel-hulled ship passing overhead. Every steel vessel creates a magnetic anomaly — a warping of the Earth's local magnetic field — that a magnetometer can detect at ranges of hundreds of meters. Modern magnetic mines use sensitive magnetometers that can distinguish between the signatures of different ship classes.

Acoustic mines listen for the sound signatures of ships: propeller cavitation, engine vibrations, hull noise from wave impacts. Each ship class produces a distinctive acoustic fingerprint, and advanced acoustic mines can be programmed to detonate only for specific target types — ignoring fishing boats and waiting for warships.

Pressure mines detect the drop in water pressure caused by a ship's hull displacing water as it passes. This is the hardest trigger mechanism to counter because there is no practical way to sweep for pressure mines — you cannot simulate the pressure wave of a 100,000-ton aircraft carrier without using something of comparable size.

Combination mines use two or more trigger mechanisms simultaneously, requiring multiple conditions to be met before detonation. A combination mine might require a magnetic signature AND an acoustic signature AND a specific pressure change — all matching a preprogrammed target profile — before it fires. This makes them nearly impossible to trigger accidentally or sweep deliberately.

Quickstrike: How to Mine a Strait from 30,000 Feet

The United States has invested heavily in one mine warfare capability that no other nation can match: the ability to lay precision minefields from aircraft flying at high altitude and high speed. The weapon system that makes this possible is Quickstrike.

Quickstrike mines are converted general-purpose bombs — the same Mk 82 (500 lb), Mk 83 (1,000 lb), and Mk 84 (2,000 lb) bombs used for conventional air strikes — fitted with mine target detection devices instead of impact fuses. A standard Mk 82 bomb becomes a Mk 62 Quickstrike mine. A Mk 84 becomes a Mk 65. The conversion is simple, cheap, and can be done at any air base that handles conventional munitions.

What transforms Quickstrike from a gravity weapon into a precision mining system is the addition of a JDAM (Joint Direct Attack Munition) guidance kit. The resulting weapon — Quickstrike-J — uses GPS guidance to place each mine within meters of its intended position. A B-52 carrying 45 Quickstrike-J mines can lay a precisely charted minefield across a strait entrance in a single pass at 30,000 feet, well above the range of most air defenses.

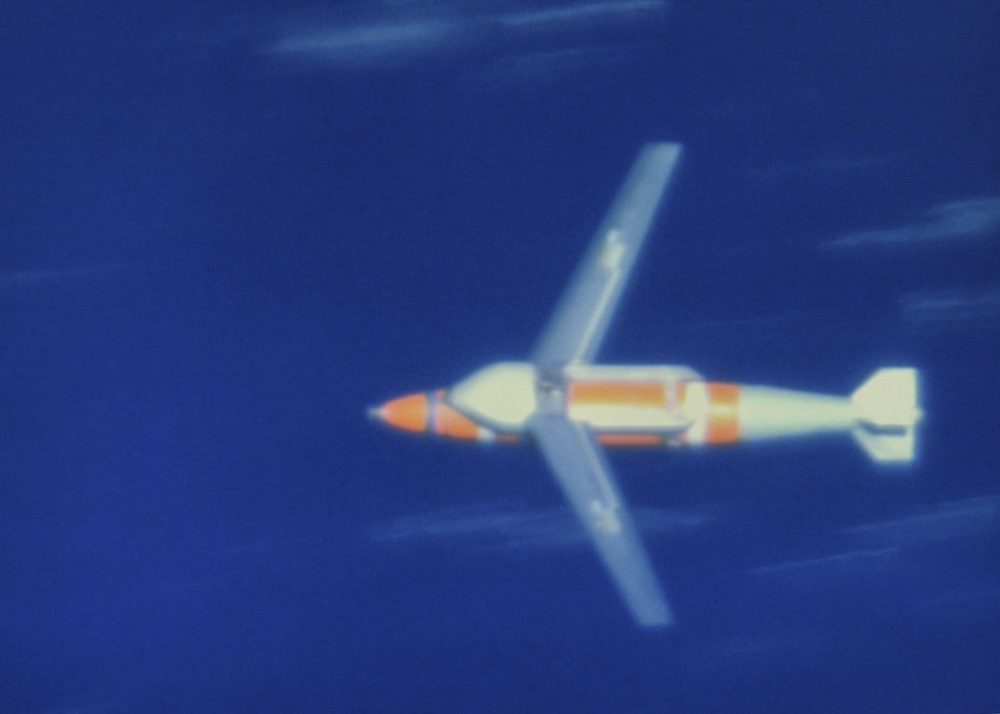

The latest evolution is Quickstrike-ER (Extended Range), which adds pop-out wings to the weapon, giving it a glide range of up to 40 nautical miles. The launching aircraft never needs to fly over the minefield — it releases the weapons from standoff distance, and they glide to their programmed positions. A squadron of B-1B Lancers carrying Quickstrike-ER weapons could mine every approach to a major port in under 48 hours without a single aircraft entering the engagement zone of shore-based air defenses.

No other country has this capability. Most nations that lay mines do so from surface ships or submarines — slow, dangerous methods that require getting close to the target area. America's ability to lay precision minefields from strategic bombers at altitude is an asymmetric advantage that inverts the usual asymmetry of mine warfare.

How Minesweeping Works — and Why It Takes So Long

Clearing a minefield is exponentially harder than laying one. A single aircraft can mine a strait in hours. Clearing that same strait can take weeks or months, and the mine countermeasures force can never be completely certain it found every weapon.

Traditional minesweeping uses dedicated mine countermeasures ships that tow various devices through suspected minefields. Mechanical sweeps use cables to cut the anchor lines of moored contact mines, bringing them to the surface where they can be destroyed by gunfire. Magnetic sweeps tow energized cables that generate artificial magnetic fields to trigger magnetic influence mines. Acoustic sweeps tow noise generators that simulate ship sounds to trigger acoustic mines.

None of these methods work against pressure mines. None of them work reliably against combination mines that require multiple simultaneous triggers. And all of them require the minesweeping ship to physically enter the minefield, accepting the risk that its own hull will trigger a mine that the sweep equipment missed.

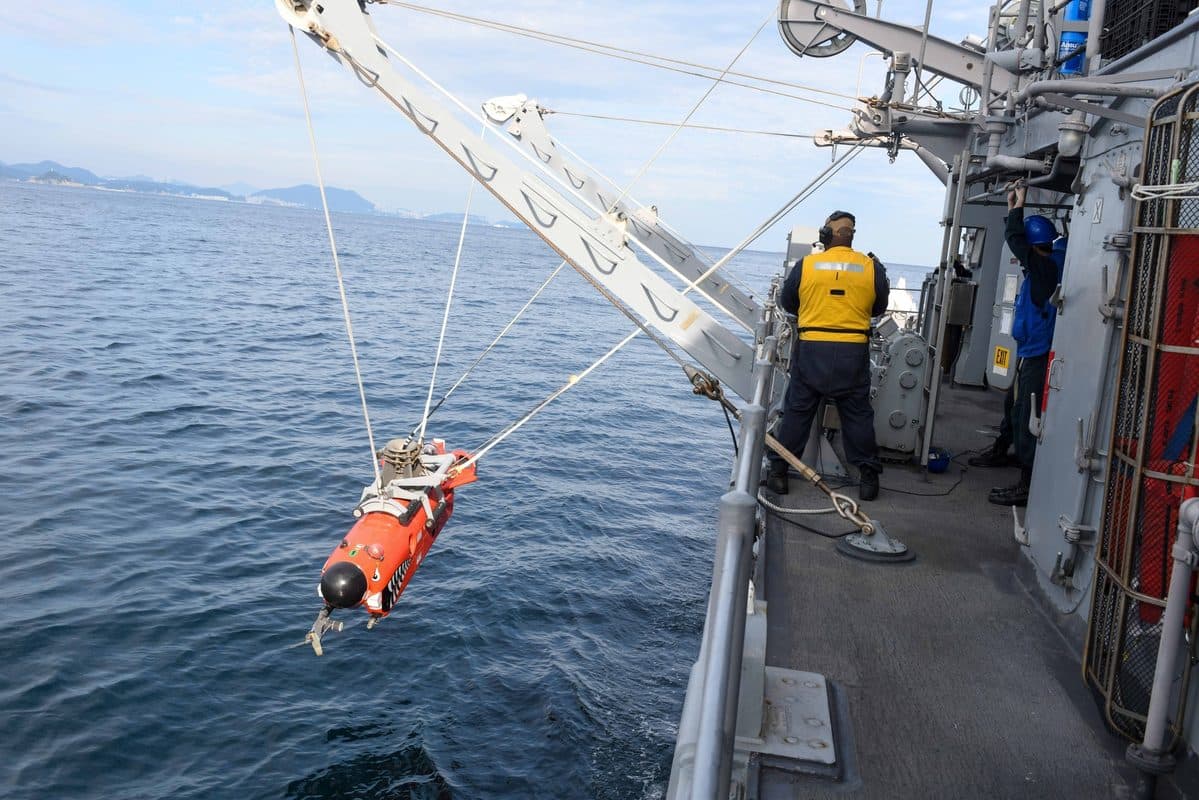

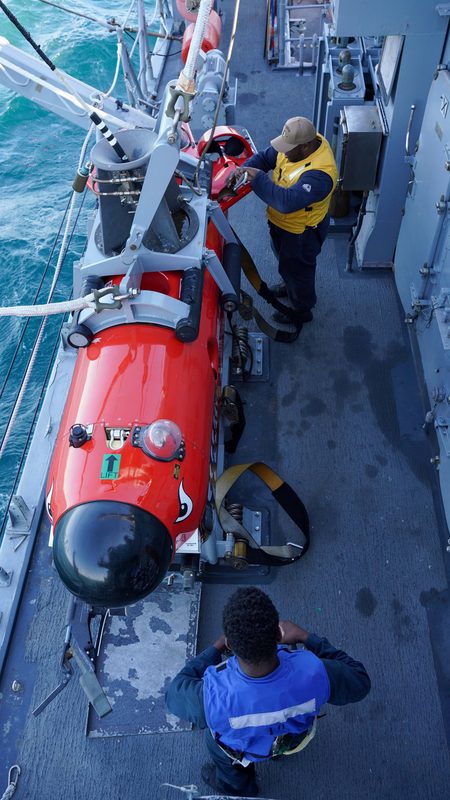

Modern mine hunting uses a different approach: sonar-equipped ships or remotely operated vehicles scan the seabed to locate individual mines, then send a mine neutralization vehicle — a small unmanned submersible — to place a charge next to each mine and detonate it. This is safer but agonizingly slow. A mine hunting team can clear perhaps a few square miles per day in good conditions. A major strait like Hormuz spans 21 miles at its narrowest point and extends over 100 miles in length.

The Dolphins

One of the Navy's most effective — and least publicized — mine detection systems uses biological sonar rather than electronic sonar. The U.S. Navy Marine Mammal Program, based in San Diego, trains bottlenose dolphins and California sea lions to detect mines in harbors, shipping channels, and coastal waters.

Dolphins possess a biological sonar system — echolocation — that remains superior to any man-made sonar for detecting small objects on or beneath the seafloor. A dolphin's echolocation can detect a mine-sized object buried under sediment, something that conventional mine-hunting sonar struggles to do. The Navy trains dolphins to locate mines and mark their positions with acoustic transponders, allowing human operators to neutralize them.

The program has been operational since the 1960s and has deployed dolphins to the Persian Gulf, the waters around Iraq during Operation Iraqi Freedom, and to various ports around the world for fleet protection exercises. The dolphins receive years of specialized training and round-the-clock veterinary care. They are not expendable — they mark mines for humans to destroy, rather than triggering them.

The Samuel B. Roberts: What a Single Mine Can Do

On April 14, 1988, the guided-missile frigate USS Samuel B. Roberts struck an Iranian-laid contact mine while escorting reflagged Kuwaiti tankers through the Persian Gulf during Operation Earnest Will. The mine blew a 15-foot hole in the hull, flooded the engine room, knocked both gas turbines from their mounts, and broke the ship's keel — structural damage that is normally fatal to a warship.

The crew saved their ship through five hours of extraordinary damage control, fighting fires and flooding simultaneously. Ten sailors were injured. The repair bill was $89.5 million — workers cut out the entire engine room and welded in a 315-ton replacement module. The mine that caused all this damage was a simple M-08 contact mine that Iran had purchased for approximately $1,500.

Four days after the Roberts was mined, the United States launched Operation Praying Mantis — the largest American naval surface engagement since World War II — destroying two Iranian oil platforms, sinking a frigate, and damaging several other vessels. A $1,500 mine triggered a response that reshaped the naval balance of the Persian Gulf.

The Strait of Hormuz Problem

The most dangerous mine warfare scenario in the world sits at the mouth of the Persian Gulf. The Strait of Hormuz — 21 miles wide at its narrowest, with shipping lanes just 2 miles wide in each direction — carries roughly 20 percent of the world's oil supply. Iran's coastline dominates the northern side of the strait, and Iran possesses an estimated 2,000 to 5,000 naval mines of various types.

In a conflict, Iran could deploy mines from fast attack boats, submarines, dhows disguised as fishing vessels, and shore-based launchers. Mining the strait would not require sophisticated weapons — even simple contact mines, scattered across the shipping lanes, would force commercial traffic to halt until the lanes were swept. The economic damage of closing Hormuz for even a few weeks would run into hundreds of billions of dollars.

The U.S. Navy's ability to reopen Hormuz depends on its mine countermeasures force, which has been chronically underfunded and underequipped for decades. The Navy currently operates four Avenger-class mine countermeasures ships — wooden-hulled vessels built in the late 1980s and early 1990s — supplemented by MH-53E Sea Dragon mine countermeasures helicopters that are among the oldest aircraft in the naval inventory.

The Navy's plan to modernize mine warfare relies on the Littoral Combat Ship's mine countermeasures mission package, which uses unmanned systems — the Knifefish unmanned underwater vehicle and the AN/AQS-20 mine-hunting sonar — deployed from the LCS or from shore. This system has been in development for over a decade and has faced repeated delays and cost overruns. The gap between the threat and the capability to counter it remains the Navy's most dangerous vulnerability, not because mines are high-tech weapons, but precisely because they are not.

A $25,000 mine remains the most cost-effective weapon in naval warfare. And the hardest part is not building the mine or laying it. The hardest part is finding it after it is down — because a mine that might be there is almost as effective as a mine that is.
